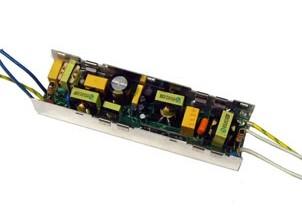

35W Digital Ballast Ceramic Metal Halide Ballast High Pressure
sodium Lamp electronic ballast
Advantages and characteristics
1, energy saving
The ballast itself consumes less power, saves 40% more power than
an inductive ballast, increases light efficiency by 12%, and has a
ballast power factor greater than 0.96.
2, constant power, extend the life of the light source
The light source starts quickly without flicker, so that the color
temperature and brightness of the light source do not change with
voltage fluctuations. The constant low-frequency operating current
output will not produce acoustic resonance phenomenon, reduce the
damage to the lamp, and extend the life of the light source by 30%.
3, environmental protection, low noise and no pollution
Low harmonic content, no interference with the power grid and other
equipment, low noise and no radiation.
4, to achieve intelligent control
With over-voltage, over-current, open circuit, short circuit,
temperature and many other protection features, fire safety is
guaranteed. Dimmable and smart control.
5, for a wide range of ambient temperatures
Use a wide range of ambient temperature, low temperature rise, -25
C ~ +55 C
SPECIFICATION
| Specification | Model | BRI-H35C-163 |
| Material | Aluminum |
| Dimension | 163*43*30mm |
| Net Weight | 258g |
| Style | Electronic |
| Usage | HID, High Intensity Discharge |
| Matched Bulb | MH, CMH, CDM |
TECHNICAL PARAMETERS
| Technical Parameters | Input Voltage | 165~265VAC |
| Input Current | 0.25A~0.16A |
| Input Power | 40W±2 |
| Input Frequency | 50Hz～60Hz |
| Surge Current | ＜20A |
| Power Factor | ＞0.95 |
| THD | ＜10% |
| Input Insurance | 250V/2.5A |
| Ouput Power | 35W±2 |
| Lamp Voltage | 75V～150V |
| Output Frequency | 130Hz±10Hz |
| Crest Factor | ＜1.7 |
| Open Circuit Protection | ＞300V |
| Ignition [striking] voltage | ＜5KV |
| Short-circuit protection | YES |
| Open-circuit protection | YES |
| Ignition failure protection | YES |
| Thermal protection | YES |
| Lamp failure protection | YES |
| Low-voltage protection | YES |
| Ballast to Lamp distance | <5m |
| Working temperature | -25℃～+50℃ |
| Min starting temperature | -25℃ |
| EMC | EN55015,FCC18C |
| Support dimming | NO |
| Dimming setting | // |
PACKAGING
| Packaging | Inner Box Size | 165*45*35 mm |
| Carton Package | 37*25*26.5 cm |
| Package Qty. | 50pcs/carton |
| Package G.W. | 13.6KG |
| Package CBM | |
APPLICATION
Street Lighting, Flood Lighting, Plant Lighting, Aquarium Lighting,
Functional Lighting, Industrial Lighting etc.
